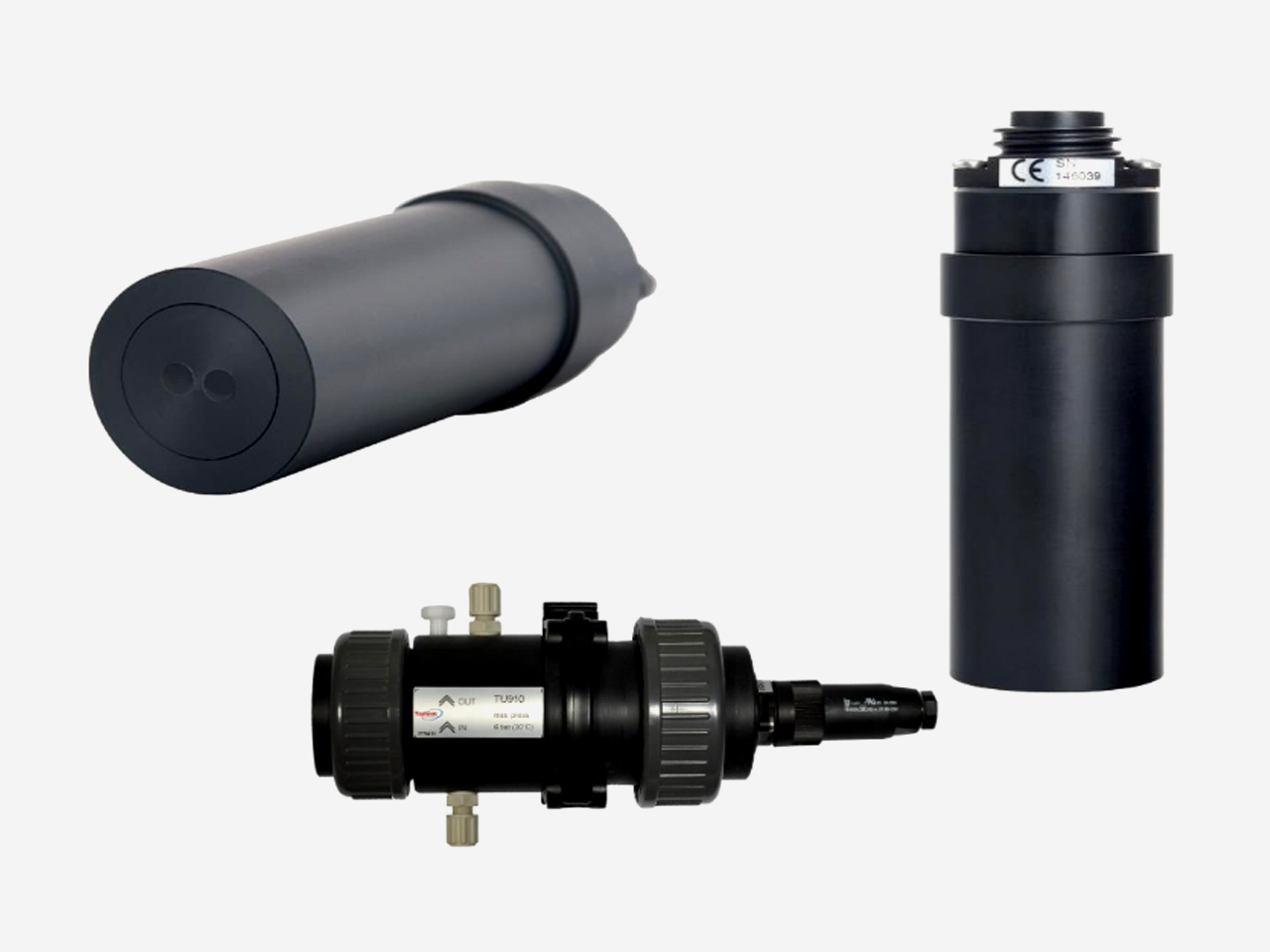

Turbudity Sensor

Home / Our Products / Turbudity Sensor

FEATURES

Nephelometric principle based sensor
Internal sensor for empty/dirty lens checking
Built-in pre amplifier
Response time is 10 sec
Sample Pressure 6 Bar @ 20^°C
Connector IP67

Benefit from above Features:

Sensor life is double due to pulse based measurement
Sensor can be installed at distance up to 100m
No need of zero calibration due to self zero calibration feature

Technical Specification Of The Turbidity Probe:

MAKE : B&C ELECTRONIC
TURBIDITY RANGES : 0/4.000 – 0/40.00 – 0/400.0 NTU
SENSITIVITY : 70/130 %
ZERO : ± 0.400 NTU
RESOLUTION : 0.001 NTU
ACCURACY : 0.2 % OF THE FULL-SCALE SELECTED
REPEATABILITY : 0.1 %
TEMPERATURE LIMIT : : 0/50 ^°C
POWER SUPPLY : 9/36 VDC

CURRENT LOOP : 4/20 MA ISOLATED
LOAD : 600 OHM MAX. AT 24 VDC
PROTOCOLS : ASCII & MODBUS RTU (03, 06, 16 FUNCTIONS)
OPERATING TEMPERATURE : 60 ^°C MAX.
OPERATING PRESSURE : 6 BAR AT 25 °C (TU 8525.090)
CABLE Length : 1M, PVC SHEATH
PROTECTION : IP 68
EMC/RFI CONFORMITY : EN 61326-2-3/2013, EN 55011/2009

Technical Specification Of The Turbidity Flow Cell:

SAMPLE FLOW : 0.2 – 0.5 l/min
SEAL : NBR
SHUTTER : POM
FIXING : THREAD G 1 ¼^”
FITTINGS : 1/8” FOR 4X6 mm TUBING
TUBE : POLYTHENE 4X6 mm l=5
FLOW REGULATION : NEEDLE VALVE

ENCLOSURE

ENCLOSURE MOC : GI
DIMENSIONS : Fitted for Sensor and electronics
INGRESS PROTECTION : IP65
ENCLOSURE FLAMMABILITY : UL94-HB.
Software Specifications
AI software, if required for data analysis.

Technical Specification Of Local Display

SCREEN : LCD display or better
DISPLAY RANGE : 0-400 NTU
INDICATOR POWER SUPPLY : 100 TO 240V 50/60HZ
SIGNAL INPUT : 4 TO 20 MA
OUTPUT COMMUNICATION : RS 485 MODBUS

Technical Specification Sampling Pump

OPERATING SUPPLY : 24V DC
WORKING PRESSURE : 90 PSI
MAXIMUM PRESSURE : 140 PSI
OPEN FLOW : 1.7 L /MIN.
MAXIMUM AMP. : 1.2 AMP.
SUCTION HEIGHT : 2 METER
